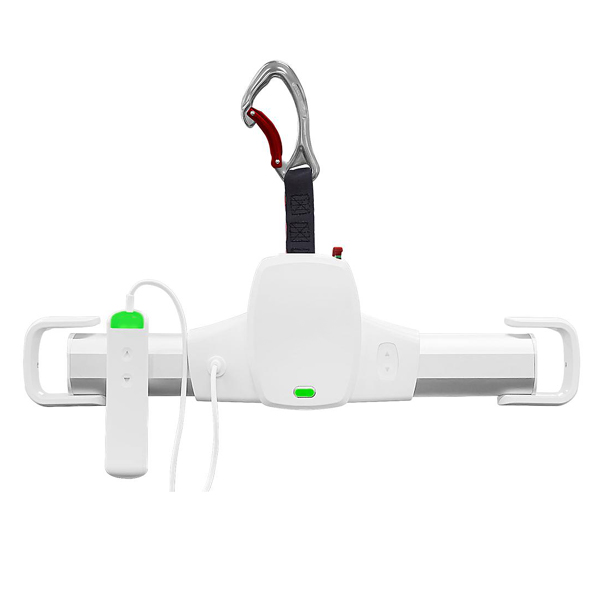

The Ansla GoLift Portable450 system is designed for clinicians to easily transfer a patient lift from room to room. The Ansla GoLift Portable450 system is the smallest and lightest portable patient lift on the market today, weighing only 6lbs. This makes the transition of the lift from room to room easy and possible. The GoLift Portable450 can lift up to 450lbs, catering to a wide variety of patient clientele. The hand control comprises of a seamless design, and magnetic attachments, allowing for easy cleaning and infection prevention.
The anatomy of the Ansla GoLift Portable450, has an impressive set of all metal gears and state-of-the-art battery technology. The nickel metal hydride battery allows for triple the charge volume, permitting up to 55 lifts per charge- pending patient weight. In addition, the revolutionary trolley design allows for quick installation of the trolley into and out of the track, and can be integrated into any track system.
Specifications:
| Maximum Lifting Speed: |
Number of Lifts per Charge (Duty: 10/90): |
Safety: |
| •No load: 1.7 inches/second |
•78 with 150 lbs (25% of strap at midrange) |
•Emergency Stop |
| •150 lbs/68 kg: 1.3 inches/second |
•46 with 450 lbs (25% of strap at midrange) |
Emergency Lowering Device: •Independent Circuit |
| •450 lbs/204 kg: 1.0 inch/second |
Charging time: 2-4 Hours |
•Manual Lowering |
|
Lift Case: |
•Upper Limit Detection |
| Unit Weight: |
•Flame retardant ABS |
•Lower Limit Detection |
| •6 lbs |
•IP23 Lift - protected from fingers and water spray less 60 degrees from vertical |
•Slack Tape Sensor |
| Safe Working Load (SWL): |
Batteries: |
•Free Fall Brake (Over Speed Governor) |
| •450 lbs |
•High Capacity, Long Lasting NiMH |
•Low Battery and Dead Battery Alarms |
| Dimensions: |
•1 x 24V (1.6Ah) |
•Soft Start and Stop |
| •Length: 19.4" (49.27 cm) |
Battery Charger: |
•Overload Protection |
| •Height: 5.2" (13.20 cm) |
•Input: 100-240VAC |
Approvals: |
| •Depth of Lift: 3.7" (9.398 cm) |
•Output: 36VDC, 40 Watt, 1.0A |
•CAN/CSA-C22.2 No 60601-1:08 |
| •Strap Length: 74" (187.96 cm) |
Hand Control: |
•CAN/CSA-Z10535.1:15 |
|
•IPX4 Hand Control – protects from splashing water, no matter the direction |
Expected Service Life: |
|
|
•22,500 cycles or 10 years. It is recommended that the lift be replaced after this time. |
|
|
•The expected life of slings, batteries fuses, straps and cord is dependent upon proper maintenance. |

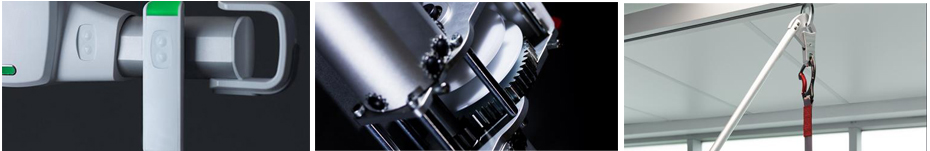

Features：
•Hand Control •Reacher Bar •Durability and Strength
Additional Features：
•Light Weight and Portable
•LED Indicators
•Infection Control
•Durable and Strong
•Easy to Service
•Magnetic Hand Control Docking
Options：

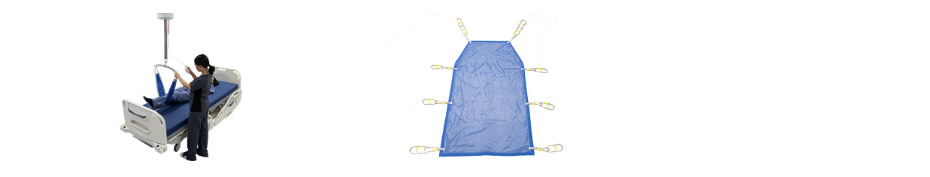

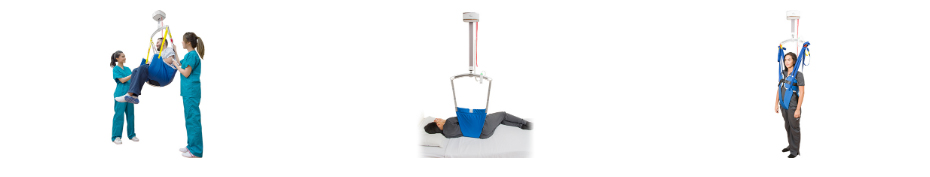

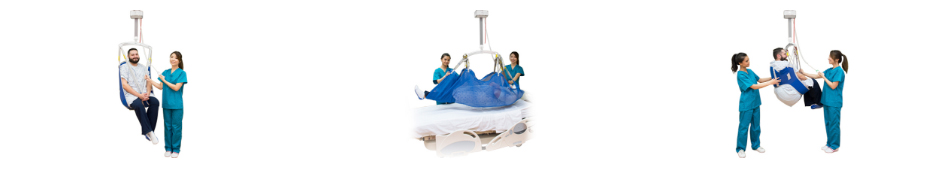

| Sling Options |
|
|
| GoBasic |
GoLong |
GoHygiene |
| •Supports the whole body including the head |
•Can be used to reposition the patient in bed |
•Suitable for patients who have head control but reduced upper body strength |
| •Can be used to lift patients with little control over their head and body |
•Ideal for transferring patients to other surfaces including beds and stretchers |
•Support around the body can be adjusted with the belt |
| •Can be used to lift and transfer from all patient surfaces including the floor |
•Can be left underneath the patient |
•Large opening at the bottom allows access for toileting and hygiene |
| GoComfort |
GoTurn |
GoActive |
| •Supports the whole body except the head |
•Provides sling solutions for repositioning |
•Provides assistance lifting a patient from a seated position |
| •Can be used to provide good support for amputees |
•Typically used for moving patient up the bed, or turning them |
•GoActive offers upper body support and allows patients to exercise in a rehabilitation setting |
| •Can be used to lift patients who have little control over their body |
|
|
| •Can lift from a seated or laying position |
|
|
| •Patients that require additional support around hip and thighs |
|
|
|
|
|
| •Suitable for lifting or supporting limbs on a person with disabilities, muscle atrophy, etc. |
•All slings are manufactured in-house and can be customized on demand |
|
| •Ideal for use with patient lifts and for lifting of heavy arms or legs |
•Available in polyester or mesh materials |
|
|
•Available in sizes small to extra large |
|
|
•Available with or without head support |
|
| GoTrack Systems & Support Structure |
|
|
| GoTrack Single |
GoTrack Double |
GoTrack Triple |
| 984 x 2.63 x 2.36" |
125.9 x 2.63 x 3.55" |
208.7 x 2.63 x 5.75" |
| (2500 x 67 x 60 mm) |
(3200 x 67 x 90 mm) |
(5300 x 67 x 146 mm) |
| 118.1 x 2.63 x 2.36" |
155.5 x 2.63 x 3.55" |
266.1 x 2.63 x 5.75" |
| (3000 x 67 x 60 mm) |
(3950 x 67 x 90 mm) |
(6760 x 67 x 146 mm) |
| 157.5 x 2.63 x 2.36" |
|
|
| (4000 x 67 x 60 mm) |
|
|
| 196.9 x 2.63 x 2.36" |
|
|
| (5000 x 67 x 60 mm) |
|
|
| 255.9 x 2.63 x 2.36" |
|
|
| (6500 x 67 x 60 mm) |
|
|
