Overall Length:

• Retracted: 92" (234 cm)
• Extended: 96" (244 cm)

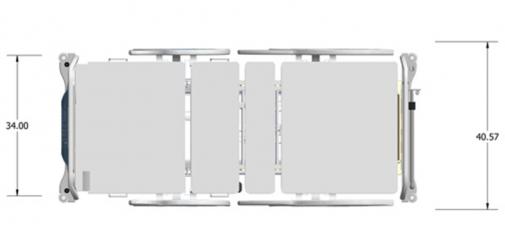

Overall Width:

• Siderails Up: 42" (107 cm)
• Siderails Down: 40" (102 cm)

Patient Surface:

• Retracted: 84" x 35" (213 x 89 cm)
• Extended: 88" x 35" (224 cm x 89 cm)

Weight Capacity:

• 550 lbs (250 kg)
• Height Range (to the surface of the Litter):
• 16" - 27" (41 cm - 69 cm)
• Standard Features
• 16" (41 cm) low height
• Unique siderail design adapted to comply with HBSW and IEC regulations
• Customized panels to suit the color scheme within the hospital facility
• 5" (13 cm) wheel casters
• Central locking brake mechanism
• Silent DC actuators
• Modular battery backup
• Electronic lock-out controls on outer siderails
• Auto-contour features when fowler is raised
• Patient controls on inner siderails
• Trendelenburg and reverse Trendelenburg
• HBSW - compliant siderails
• 550 lbs (250 kg) weight capacity
• Metal litter deck
• Integrated mattress retainer
• Integrated bed extender
• CPR release system
• Four IV pole sockets
• Two restraining strap holders
• Foley bag hook
• LED night light
• Four integrated roller bumpers
• Flat litter deck for compatibility with standard patient surfaces
• Integrated air mattress pump holder on footboard
• Optional Features and Accessories
• Pressure relief surfaces
• Siderail communications which includes nurse call and room/reading lights
• Removable IV pole
• 30° head of bed lockout
• Patient handset for motion controls
• 6" (15 cm) casters
• Brake not set alarm
• One-button chair function
