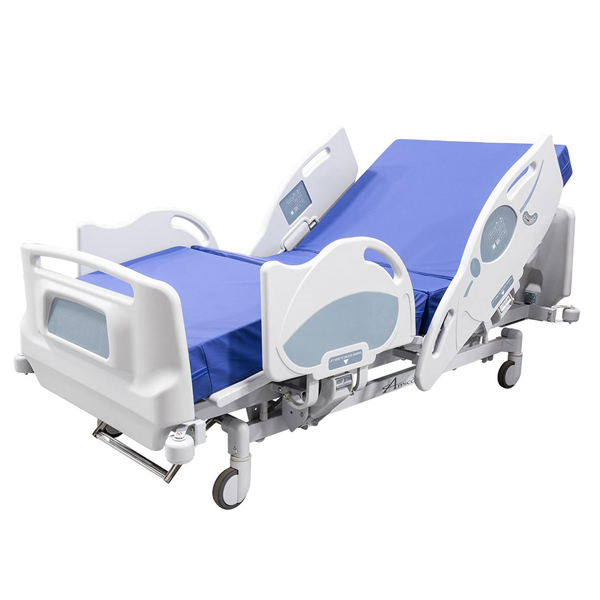

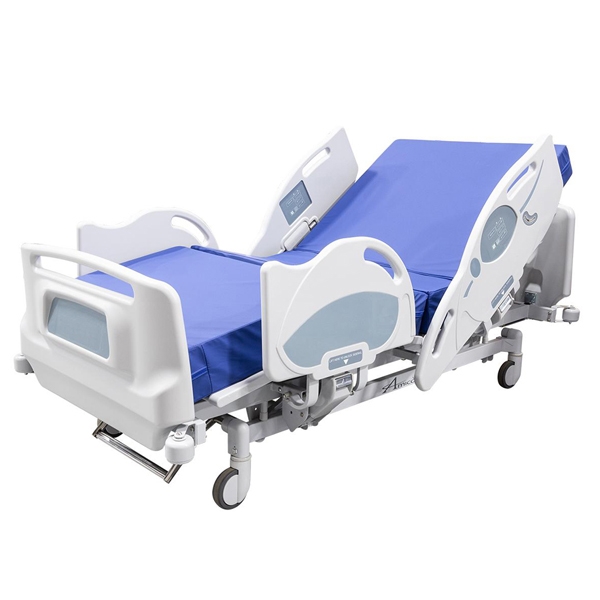

AC 200C(Three-Function Electrical Bed)
The AC 200C bed provides caregivers the control they need in the recovery environment. The simplistic design and distinctive features bring efficiency to today’s medical and surgical environment. The Ansla Care AC 200C bed features an open architecture for surfaces and removable head and foot boards which provides caregivers easy access in the event of an emergency. The head and foot boards feature an exclusive blend of polypropylene for cleanup and durability.
The functions of the bed are electronically controlled and equipped with a back-up battery that allows caregivers to make adjustments to the bed during transport and unexpected power outages.
Specifications
• Model Number
• Model Number: AC- 200C
• Overall Dimensions
• Overall Length: 88" (224 cm)
• Overall Width: 42" (107 cm)
• Patient Surface: 35" x 77" (89 x 196 cm)
• Height Range: (to the surface of the litter)
• High 29" (74 cm)
• Low 18" (46 cm)
• Litter Positioning
• Backrest: 0° - 65°
• Knee Gatch: 0° - 30°
• Weight Capacity & Caster Diameter
• Weight Capacity: 320 lbs (145.15 kg)
• Caster Diameter: 5" (13 cm)
• Voltage: 110 V @ 60 Hz or 220 V @ 50 Hz
Standard Features
• Easily removable head and footboards
• Instant CPR release lever
• 320 lb (145.15 kg) weight capacity
• LED night light
• Bed bumpers for added protection
• Three positional functions (HILO, Fowler, and Knee)
• Brake mechanism located at foot of the bed
• Battery back-up
• Caregiver-controlled “flat surface” function
• Fowler angle indicator
• 6 IV pole holders
• 2 Foley bag holders
• Linak DC actuators
• Patient control on inner side rails
• Optional Features & Accessories
• Chart holder
• 6" (15 cm) foam mattress
• Provision for Trapeze
• Handset control
