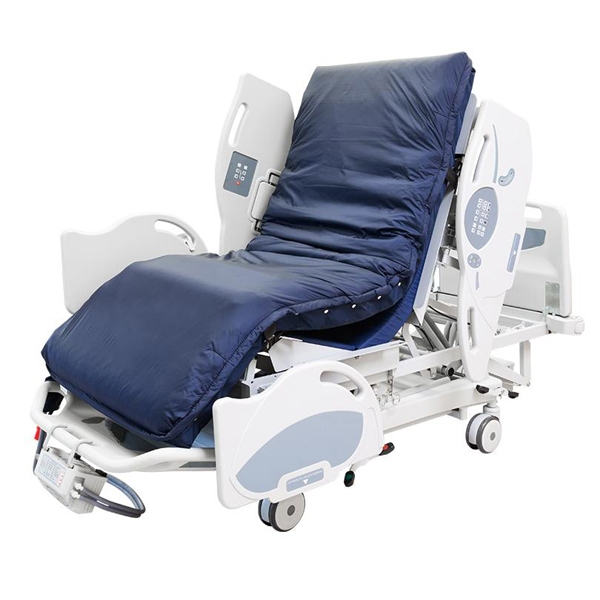

The new Ansla ICU bed features a versatile design suitable for a wide range of patients. The ICU bed is differentiated by its enhanced chair position as well as its ergonomic and robust design. This product truly helps provide a more meaningful level of care to patients.
This bed has a battery back-up system to enable motion even when the bed is disconnected or during patient transport. The ICU bed also features LINAK™ DC actuators that offer a reliable yet silent motion for the bed’s electromechanical system.
Specifications
Model Number
Model Number: B-E-AC802
Overall Dimensions
Overall Length
Retracted: 83" (211 cm)
Extended: 91" (231 cm)
Overall Width
Side rails Up: 42" (107 cm)
Side rails Down: 38" (96.5 cm)
Patient Surface
Retracted: 32" x 71" (81 cm x 180 cm)
Extended: 32" x 79" (81 cm x 201 cm)
Height Range (to the surface of the litter)
High: 38" (96.5 cm)
Low:5" (52 cm)
Litter Positioning
Trendelenburg/Reverse Trendelenburg: ± 18°
Backrest: 0° - 70°
Knee Gatch: 0° - 21°
Weight Capacity & Caster Diameter
Weight Capacity: 550 lbs (250 kg)
Caster Diameter: 6" (15 cm)
Electronics
Volts
Domestic: 120 VAC
International: 220 VAC
Ampere Rating
Domestic:5 A
International:0 A
Current Leakage: <300 μA
Frequency: 50-60 Hz
Hospital Grade Plug: Yes
Features
Key Features
550 lbs (250 kg) weight capacity
Standard fifth wheel for improved mobility
21" (53 cm) low height
Storage area in base for two oxygen E-cylinder tanks and belongings
Radiolucent fowler section
Dual brake pedal mechanisms
Adjustable knee gatch for enhanced comfort
Fold-down side rails
8" (20 cm) wheel casters
Pressure relief surfaces
Standard Features
LINAK™ DC Actuators
Modular battery backup
LED night light
Four IV pole sockets
Four integrated roller bumpers
Metal litter deck
X-ray cassette holder
CPR release system
Trendelenburg and reverse Trendelenburg
Patient controls on inner side rails
Flat litter deck for compatibility with standard patient surfaces
Adjustable bed height
Adjustable foot extension
Adjustable litter with chair position
Integrated Digital Scale
Patient Exit Alarm
Scale and Fowler Angle Indicator on Side rail
Foley Bag Holder
Integrated push handles
5th wheel for improved mobility
Optional Features & Accessories
Pressure relief surfaces
Removable IV pole - 2 stage
IV hook
Side rail covers
Overbed table
Brake not set alarm
Communication to nurse call systems
Oxygen tank holder
Bed Exit Alarm
Fowler Angle Indicator
Hand pendant controls
3-Zone Bed Exit Alarm
