Apollo TTS Bed(MedSurg Series)
The Apollo MedSurg Bed features quiet and reliable electrically powered actuators controlling the motions of the bed. It is also equipped with a backup battery that allows caregivers to make adjustments to the MedSurg bed during transport or unexpected power outages.
The Ansla Apollo MedSurg (MS) Bed uses an innovative design and incorporates distinctive features to help caregivers provide a more meaningful level of care to patients. The Apollo MedSurg Bed features quiet and reliable electrically powered actuators controlling the motions of the bed. It is also equipped with a backup battery that allows caregivers to make adjustments to the MedSurg bed during transport or unexpected power outages.
Research indicates the need for a more ergonomic design for back injuries, a lower height for patient fall reduction, siderails designed to reduce patient entrapment, and a series of one-hand operations for the bed. Ansla has designed the bed with this research in mind, and we are proud to introduce a product that is built to the most current standards while also meeting the clinician‘s needs. The Apollo MedSurg Bed can also be customized to fit your existing or planned décor. The Apollo Bed would be unique to your facility with customizable options, inserts and logos.

Specifications

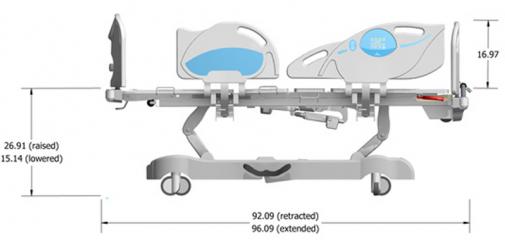

General Specifications
Overall Length:
Retracted: 92" (234 cm)
Extended: 96" (244 cm)

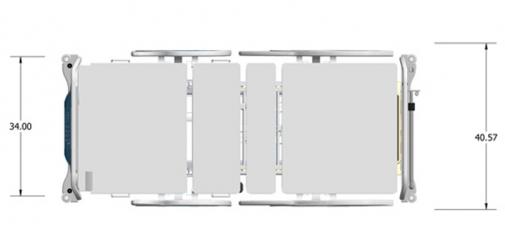

Overall Width:
Siderails Up: 42" (107 cm)
Siderails Down: 40" (102 cm)
Patient Surface:
Retracted: 84" x 35" (213 x 89 cm)
Extended: 88" x 35" (224 cm x 89 cm)
Weight Capacity:
550 lbs (250 kg)
Height Range (to the surface of the Litter):
16" - 27" (41 cm - 69 cm)

Features:

Standard Features

16" (41 cm) low height
Unique siderail design adapted to comply with HBSW and IEC regulations
Customized panels to suit the color scheme within the hospital facility
5" (13 cm) wheel casters
Central locking brake mechanism
Silent DC actuators
Modular battery backup
Electronic lock-out controls on outer siderails
Auto-contour features when fowler is raised
Patient controls on inner siderails
Trendelenburg and reverse Trendelenburg
HBSW - compliant siderails
550 lbs (250 kg) weight capacity
Metal litter deck
Integrated mattress retainer
Integrated bed extender
CPR release system
Four IV pole sockets
Two restraining strap holders
Foley bag hook
LED night light
Four integrated roller bumpers
Flat litter deck for compatibility with standard patient surfaces
Integrated air mattress pump holder on footboard
Optional Features and Accessories

Pressure relief surfaces
Siderail communications which includes nurse call and room/reading lights
Removable IV pole
30° head of bed lockout
Patient handset for motion controls
6" (15 cm) casters
Brake not set alarm
One-button chair function
