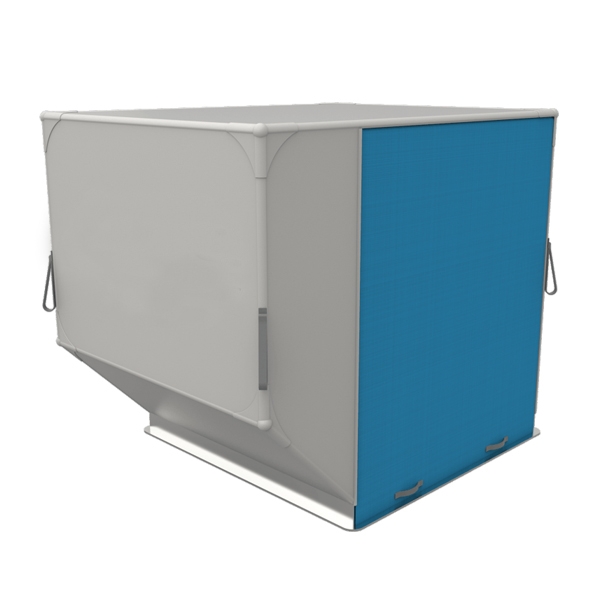

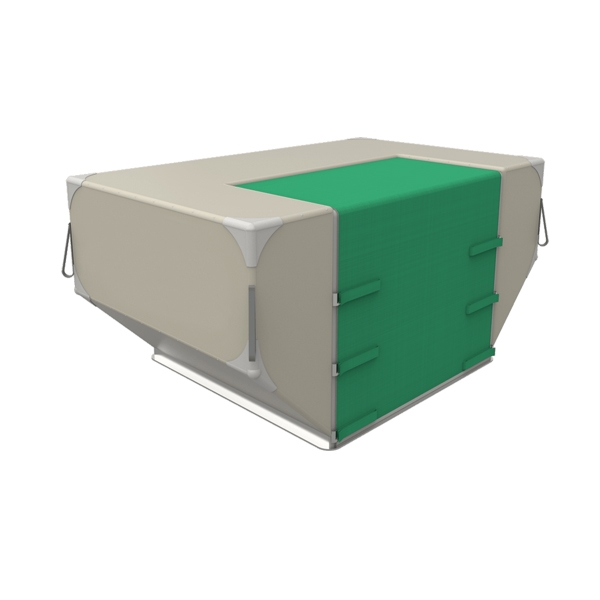

ULD Container
  • 13mm honeycomb panels
  • 18mm lower outboard panels
  • Fork-lift defender 6 strap door
  • Seat Track Attachment – Outboard, Inboard, and Forward Rails
  • Aluminum base grade 7021
  • ODLN Label
  • TSO & ETSO approved

Options​

  • 18mm honeycomb panels
  • Bottom bar door
  • Hard top AKH door
  • Aft stiffeners
  • Outboard shelves
  • Shelving: Outboard shelves
  • Large document pouch
  • Base 2.5, 2.7 or 2.8mm
  • Additional attachment points

The AeroBox Advantage

  • Proven over the last 15 years with more than 40,000 units sold
  • 10 year warranty, backed by the industry’s best warranty
  • Less repairs, typically less than 0.5 repairs per unit per year, over its life
  • More availability, less repairs = less ULDs needed = less annual capital cost
  • Less cost, faster repair processes help reduce cost and turn times
  • Less fuel and Co2, less repairs = less damaged ULDs repatriated for repair
  • Faster parts, with supply options to suit all customer’s needs
  • Fixed parts cost, with a guaranteed 10 year fixed parts cost
  • Best in class, total cost of ownership over the life of the container
  • Free Trial, experience the AeroBOX advantage with our free 12 month trial

Product Specifications
BASE DIMENSIONS 1534 x 1562 mm
60.4 x 61.5 in		 1534 x 1562 mm
60.4 x 61.5 in		 1534 x 3175 mm
60.4 x 125 in		 1534 x 1194 mm
60.4 x 47 in		 1534 x 2438 mm
60.4 x 96 in
BASE THICKNESS 2.5 mm 2.5 mm 2.8mm 2.5 mm 2.7 mm
HEIGHT 1626 mm
64 in		 1142.7 mm
45 in		 1626 mm
64 in		 1626 mm
64 in		 1626 mm
64 in
TARE WEIGHT 59 kg
130 Ib		 62 kg
137 Ib		 132 kg
(291) Ib		 47 kg
104 Ib		 86 kg
190 Ib
MAX GROSS WEIGHT 1588 kg
3500 Ib		 1588 kg
3500 Ib		 3175 kg
7000 Ib		 1225 kg
2700 Ib		 1588 kg
3500 Ib
CAPACITY 154 ft³
4.4 m³		 127 ft³
3.6 m³		 314 ft³
8.9 m³		 120 ft³
3.4 m³		 251 ft³
7.1 m³
COMPATABILITY n/a n/a n/a n/a n/a
